- 產品型號：97205415
- 頻率：10.000MHz
- 尺寸：12.7x12.7mm
- 產品介紹：Vectron維管晶振,PX-4210-DAB-FKAB-10M0000000,導航儀6G應用，美國進口晶振，Vectron維管晶振，型號PX-421系列，編碼為：PX-4210-DAE-FKAB-10M0000000，頻率為：1...
-

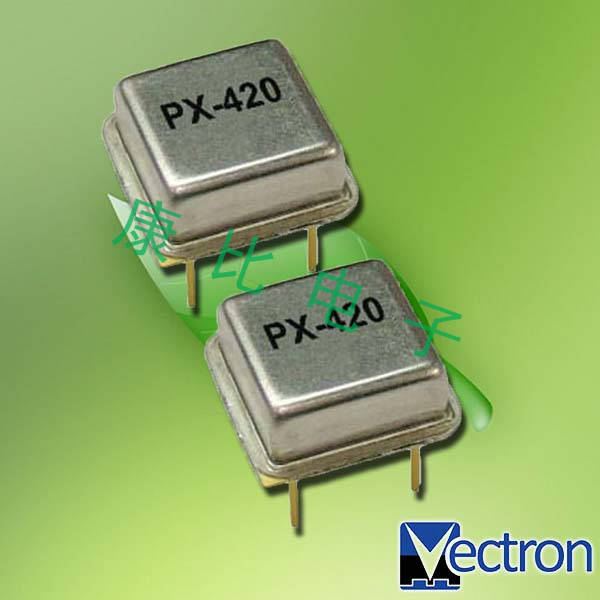

Vectron維管晶振,PX-4210-DAB-FKAB-10M0000000,導航儀6G應用
航欄(16).jpg)
.jpg)
Vectron維管晶振,PX-4210-DAB-FKAB-10M0000000,導航儀6G應用，美國進口晶振，Vectron維管晶振，型號PX-421系列，編碼為：PX-4210-DAE-FKAB-10M0000000，頻率為：10.000MHz，尺寸為：12.7x12.7mm，通孔晶體振蕩器，寬工作溫度范圍：-55℃至105℃，石英晶振，石英晶體振蕩器，有源晶振，無鉛環保晶振，完全符合RoHS。應用于：低壓時鐘應用，軍用便攜式無線電，航空電子設備，儀器測試，測量設備，醫療設備，導航等應用。
.jpg)

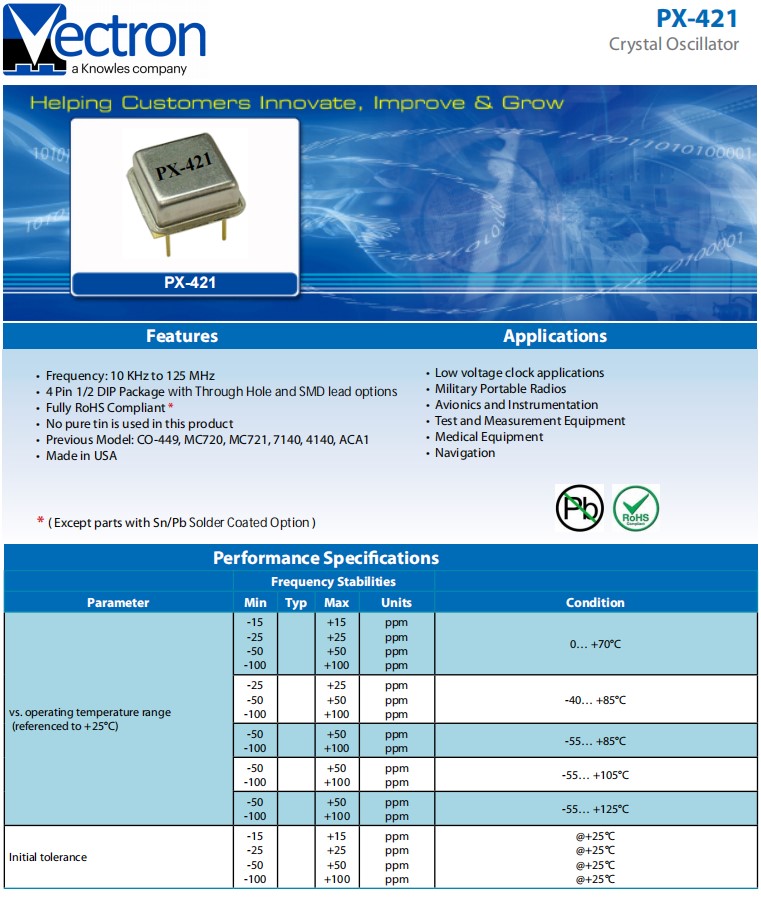

Vectron維管晶振,PX-4210-DAB-FKAB-10M0000000,導航儀6G應用，參數表
| Parameter | Min | Typ | Max | Units | Condition | ||||||||||||||||
|
Overall tolerance (Referenced to +25°C) (includes operating temperature and initial accuracy) |
-20 -25 -50 - 100 |
+20 +25 +50 +100 |
ppm ppm ppm ppm |
0… +70°C | |||||||||||||||||
|
-25 -50 - 100 |
+25 +50 +100 |
ppm ppm ppm |
-40… +85°C | ||||||||||||||||||
|
-50 -65 - 100 |
+50 +65 +100 |
ppm ppm ppm |
-55… +85°C | ||||||||||||||||||
|
-50 -65 - 100 |
+50 +65 +100 |
ppm ppm ppm |
-55… +105°C | ||||||||||||||||||
|
-65 -80 - 100 |
+65 +80 +100 |
ppm ppm ppm |
-55… +125°C | ||||||||||||||||||
|
vs. supply voltage change vs. load change vs. aging / 1st year vs. aging / year (following years) |
-2 - 1 -3 - 1 |
+2 +1 +3 +1 |
ppm ppm ppm ppm |
VS ± 5% Load ± 5% after 30 days of operation |
|||||||||||||||||
| Supply Voltage (Vs) | |||||||||||||||||||||
| Supply voltage | 4.75 | 5.0 | 5.25 | VDC | |||||||||||||||||
| Supply voltage | 3. 135 | 3.3 | 3.465 | VDC | |||||||||||||||||
| Supply voltage | 2.375 | 2.5 | 2.625 | VDC | |||||||||||||||||
| Supply voltage | 1.71 | 1.8 | 1.89 | VDC | |||||||||||||||||
|
Current consumption (+5 VDC) |
15 20 40 |
mA mA mA |
ACMOS or TTL 1.0 to 23.9 MHz ACMOS or TTL 24 to 49.9 MHz ACMOS or TTL 50 to 125.00 MHz |
||||||||||||||||||
|
Current consumption (+3.3 VDC or +2.5 VDC) |
1.5 4 8 12 20 30 |
mA mA mA mA mA mA |
ACMOS 1.0 to 14.9 MHZ ACMOS 15.0 to 39.9 MHZ ACMOS 40.0 to 59.9 MHZ ACMOS 60.0 to 84.9 MHZ ACMOS 85.0 to 124.9 MHZ ACMOS 125.0 to 170.0 MHZ |
||||||||||||||||||
|
Current consumption (+1.8 VDC) |
1.0 2 3 4 10 15 |
mA mA mA mA mA mA |
ACMOS 1.0 to 14.9 MHZ ACMOS 15.0 to 39.9 MHZ ACMOS 40.0 to 59.9 MHZ ACMOS 60.0 to 84.9 MHZ ACMOS 85.0 to 124.9 MHZ ACMOS 125.0 to 170.0 MHZ |
||||||||||||||||||
| RF Output | |||||||||||||||||||||
| Signal | HCMOS / ACMOS | ||||||||||||||||||||
| Load | 15 | 50 | pF | ||||||||||||||||||
| Signal Level (Vol) |
0.5 0.3 0.25 0.2 |
VDC VDC VDC VDC |
with Vs=5.0V and 15pF load with Vs=3.3V and 15pF load with Vs= 2.5V and 15pF load with Vs= 1.8V and 15pF load |
||||||||||||||||||
| Signal Level (Voh) |
4.5 3.0 2.25 1.62 |
VDC VDC VDC VDC |
with Vs=5.0V and 15pF load with Vs=3.3V and 15pF load with Vs=2.5V and 15pF load with Vs=1.8V and 15pF load |
||||||||||||||||||
|
Rise and fall times for ACMOS (measured 10% to 90%) |
10 6 3 |
ns ns ns |
1.0 to 23.9 MHz 24.0 to 79.9 MHz 80.0 to 125.0 MHz |
||||||||||||||||||
| Duty cycle |
45 40 |
55 60 |
% % |
@ 50% < 15 MHz @ 50% => 15 MHz |
|||||||||||||||||
.jpg)

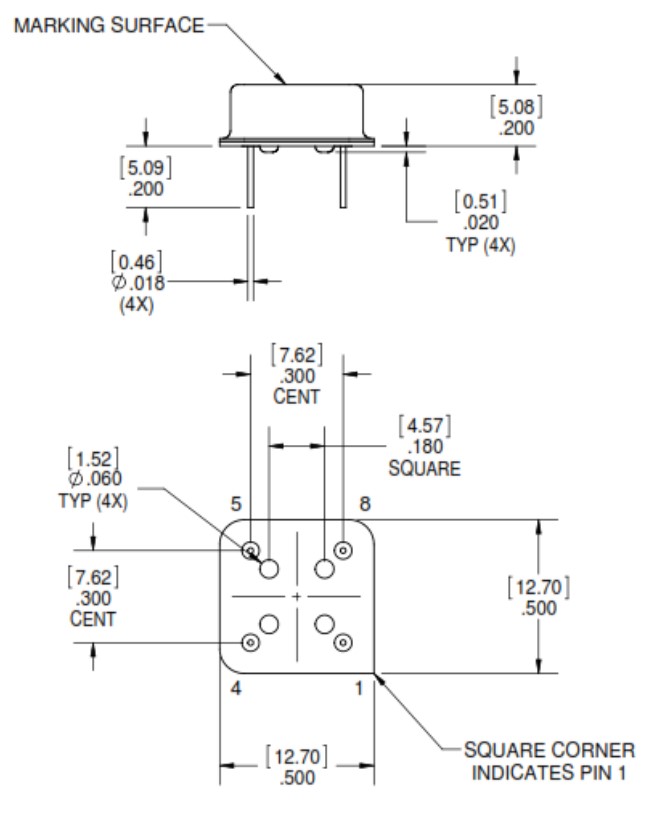

Vectron維管晶振,PX-4210-DAB-FKAB-10M0000000,導航儀6G應用，尺寸圖
Vectron維管晶振,PX-4210-DAB-FKAB-10M0000000,導航儀6G應用
產品特征：
低壓時鐘應用
軍用便攜式無線電 有源晶振
航空電子設備和儀器
測試和測量設備
醫療設備
導航
