- 產品型號：2402003
- 頻率：40MHz
- 尺寸：2.0x1.6mm
- 產品介紹：福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC1BA，(FormerFXA2016B)，編碼為：FC1BABCVI40.0-T1，頻率為：4...
-
福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振
.jpg)
.jpg)
福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振，美國進口晶振，FOX晶振，福克斯晶振，型號：FC1BA，(Former FXA2016B)，編碼為：FC1BABCVI40.0-T1，頻率為：40.000MHz，小體積晶振尺寸：2.0x1.6mm封裝，石英晶振，四腳貼片晶振，無源晶振，SMD晶振，石英晶體諧振器，諧振器，工作溫度范圍：-40℃至+125℃，耐高溫晶振，無鉛晶振。具有超小型，輕薄型，高精度，高性能，高品質，高穩定性，耐熱及耐環境特點。被廣泛應用于：通訊設備，無線藍牙，智能穿戴設備，小型便捷式設備，智能手機，平板電腦，智能家居，游戲機設備，汽車電子，汽車影音，數碼電子，遙控器設備應用等。
.jpg)
福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振,參數表
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||
| Frequency Range | 40.000MHz | ||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||
| Frequency Stability, ref 25°C | (See options below) | ||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
See options below -55°C ~ +150°C |
||||||||||||
| Shunt Capacitance (CO) | 3 pF | ||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||
| Drive Level | 100 µW | ||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | ||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | ||||||||||||
| Termination Finish |
Au (0.3~1.0µm) over Ni (1.27~8.89µm) |
||||||||||||
| Seal Method | Seam | ||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||
| RoHS Compliant | Yes, no exemptions | ||||||||||||
| REACH Compliant (latest version) | Yes |
.jpg)

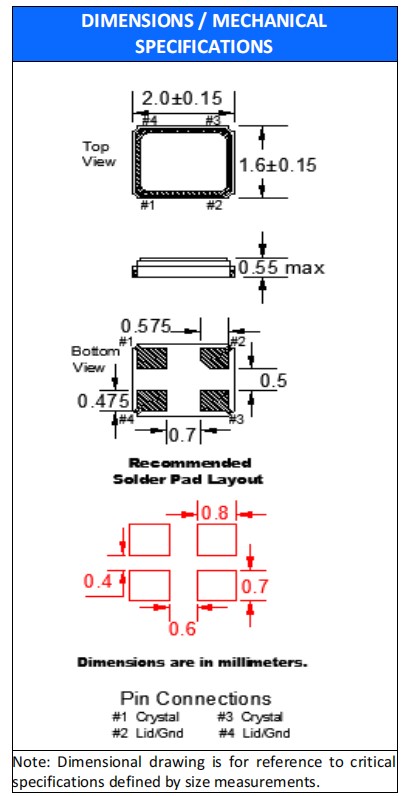

福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振,尺寸圖
福克斯2016mm諧振器,FC1BABCVI40.0-T1,汽車影音晶振
產品特點：
外形尺寸：2.0mmx1.6mm貼片晶振
頻率范圍：16.000MHz~54.000MHz
AEC Q200合格
IATF-16949平方米
公差低至±10 PPM
穩定性低至±20 PPM
| 原廠編碼 | 晶振廠家 | 型號 | 頻率 | 包裝/封裝 | 頻率穩定度 |
| FQ5032B-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-16.000 | Fox晶振 | FX252B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-25.000 | Fox晶振 | FQ3225B | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-24.000 | Fox晶振 | FQ3225B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-12.000 | Fox晶振 | FX425B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-18.432 | Fox晶振 | C5BQ | 18.432MHz | 4-SMD, No Lead | ±30ppm |
| FX252BS-24.000 | Fox晶振 | FX252B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-24.576 | Fox晶振 | C5BQ | 24.576MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-24.000 | Fox晶振 | C5BQ | 24MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-12.000 | Fox晶振 | C5BQ | 12MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-20.000 | Fox晶振 | C5BQ | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-24.000 | Fox晶振 | C5BQ | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-27.000 | 石英晶振 | FQ3225B | 27MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-25.000 | Fox晶振 | FQ3225B | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-24.000 | Fox晶振 | FQ3225B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-20.000 | Fox晶振 | FX252B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032BR-10.000 | Fox晶振 | C5BQ | 10MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032BR-16.000 | Fox晶振 | C5BQ | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-10.000 | Fox晶振 | FX532B | 10MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-16.000 | Fox晶振 | FX425B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ5032B-19.6608 | Fox晶振 | C5BQ | 19.6608MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-14.7456 | Fox晶振 | C5BQ | 14.7456MHz | 4-SMD, No Lead | ±30ppm |
| FQ5032B-10.000 | Fox晶振 | C5BQ | 10MHz | 4-SMD, No Lead | ±30ppm |
| FQ3225B-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| 603-12-67 | Fox晶振 | FX325BS | 12MHz | 4-SMD, No Lead | ±50ppm |
| 617-24.572675-1 | Fox晶振 | FX216B | 24.572675MHZ | 4-SMD, No Lead | ±50ppm |
| FX532B-11.0592 | Fox晶振 | FX532B | 11.0592MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-12.000 | Fox晶振 | FX532B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-16.000 | Fox晶振 | FX532B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-20.000 | Fox晶振 | FX532B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.000 | Fox晶振 | FX532B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX532B-24.576 | Fox晶振 | FX532B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-20.000 | Fox晶振 | FX425B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.000 | Fox晶振 | FX425B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.576 | Fox晶振 | FX425B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| 603-25-203 | Fox晶振 | FX325BS | 25MHz | 4-SMD, No Lead | ±50ppm |
| 603-40-48 | Fox晶振 | FX325BS | 40MHz | 4-SMD, No Lead | ±20ppm |
| 603-25-261 | Fox晶振 | FX325BS | 25MHz | 4-SMD, No Lead | ±20ppm |
