- 產品型號：11788554
- 頻率：32.768KHz
- 尺寸：1.6x1.0x0.5mm
- 產品介紹：EPSON無源晶體FC1610AN,X1A000121000500,小型通訊設備6G晶振，日本進口晶振，EPSON愛普生石英晶振型號FC1610AN，編碼為：X1A000121000500，頻率為：32.768KHz，小...
-

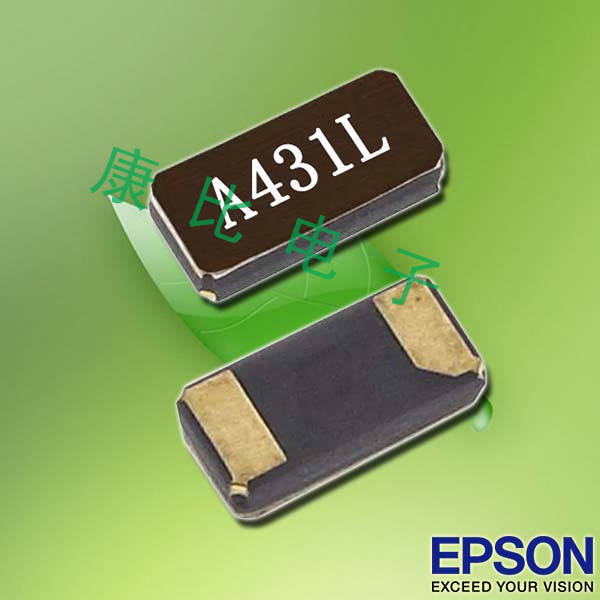

EPSON無源晶體FC1610AN,X1A000121000500,小型通訊設備6G晶振
航欄(16).jpg)
.jpg)
EPSON無源晶體FC1610AN,X1A000121000500,小型通訊設備6G晶振，日本進口晶振，EPSON愛普生石英晶振型號FC1610AN，編碼為：X1A000121000500，頻率為：32.768KHz，小體積晶振尺寸：1.6x1.0x0.5mm，兩腳貼片晶振，無源晶體，石英晶振，石英晶體諧振器，無鉛環保晶振，工作溫度范圍：-40℃至+85℃，具有超小型，輕薄型，耐熱及耐環境特點。被廣泛用于：小型通訊設備，便捷式設備，智能手機，平板電腦，兒童手表，鐘表電子，儀器儀表設備，智能水電表，智能手表，計時產品等。
.jpg)

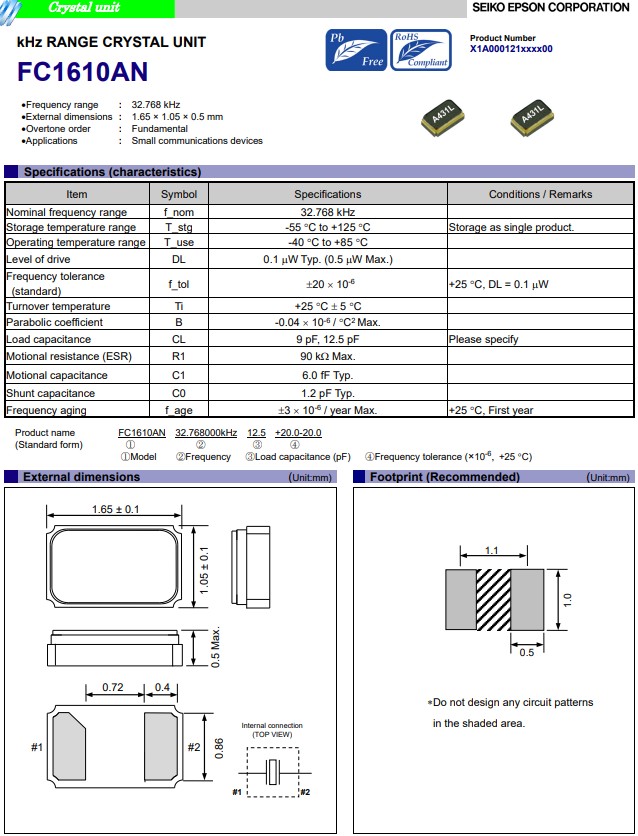

EPSON無源晶體FC1610AN,X1A000121000500,小型通訊設備6G晶振，參數表
| Item | Symbol | FC1610AN | Condition/Remarks |
| Nominal frequency range | f_nom | 32.768kHz | |
| Storage temperature | T_stg | -55°C to +125°C | Store as bare product. |
| Operating temperature | T_use | -40°C to +85°C | |
| Level of drive | DL | 0.1µW Typ. | |
| (0.5µW Max.) | |||
| Frequency tolerance (standard) | f_tol | ± 20 × 10-6 | +25°C, DL=0.1µW |
| Turnover temperature | Ti | +25°C ±5°C | |
| Parabolic coefficient | B | -0.04 × 10-6/ °C2 Max. | |
| Load capacitance | CL | 9pF, 12.5pF | Please specify |
| Motional resistance (ESR) | R1 | 90kΩ Max. | |
| Motional capacitance | C1 | 6.0fF Typ. | |
| Shunt capacitance | C0 | 1.2pF Typ. | |
| Frequency aging | f_age | ±3 ×10-6 / year Max. | +25°C, First year |
.jpg)

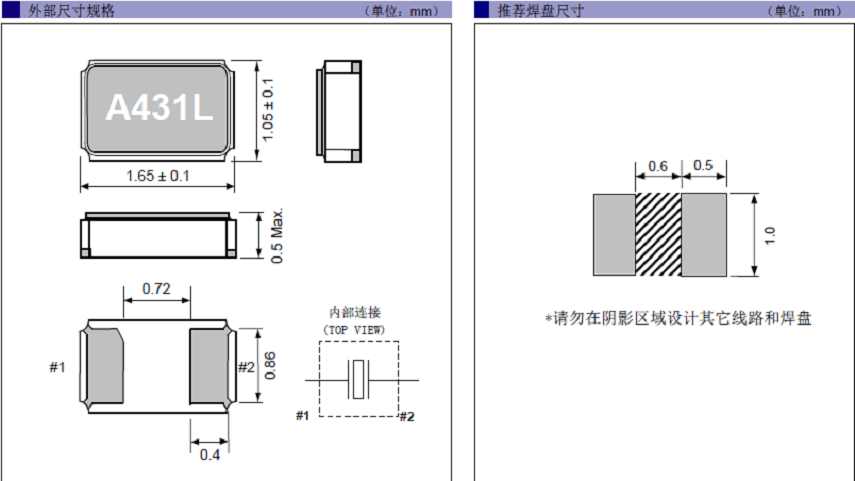

EPSON無源晶體FC1610AN,X1A000121000500,小型通訊設備6G晶振，尺寸圖
EPSON無源晶體FC1610AN,X1A000121000500,小型通訊設備6G晶振
32.768KHz系列產品本身具有體積小,厚度薄,重量輕等特點,此音叉型石英晶體諧振器,晶振產品本身具備優良的耐熱性,耐環境特性,在辦公自動化,家電領域,移動通信領域可發揮優良的電氣特性,符合無鉛標準,滿足無鉛焊接的回流溫度曲線要求,金屬外殼的石英晶振使得產品在封裝時能發揮比陶瓷晶振外殼更好的耐沖擊性能.
| 編碼 | 型號 | 鐘表晶振 | 尺寸 | 負載 | 頻率 @+25°C | 工作溫度 |
| X1A000171000100 | FC2012AN | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 12.5 pF | +/-20.0 ppm | -40℃~+105℃ |
| X1A000171000200 | FC2012AN | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-20.0 ppm | -40℃~+105℃ |
| X1A000171000300 | FC2012AN | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 7 pF | +/-20.0 ppm | -40℃~+105℃ |
| X1A000121000800 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 7 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121000500 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 12.5 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121000600 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 9 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121000700 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 15 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121001100 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 9 pF | +/-10.0 ppm | -40℃~+85℃ |
| X1A000121001200 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 12.5 pF | +/-10.0 ppm | -40℃~+85℃ |
| X1A000121001300 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 6 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121001400 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 7 pF | -10.0/+20.0 ppm | -40℃~+85℃ |
| X1A000061000200 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 12.5 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061000300 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 12.5 pF | +/-30.0 ppm | -40℃~+85℃ |
| X1A000061000800 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061003000 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 8 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061003200 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 6.6 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021000200 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | 貼片晶振 |
| X1A000021000700 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021000800 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001000 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001100 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001200 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001300 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001400 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | -10.0/+30.0 ppm | -40℃~+85℃ |
| X1A000021001500 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | 20.0/+60.0 ppm | -40℃~+85℃ |
| X1A000021001600 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 7 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061000600 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 7 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061001400 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 12.5 pF | +/-10.0 ppm | -40℃~+85℃ |
| X1A000061002100 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 6 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061002400 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-10.0 ppm | -40℃~+85℃ |
| X1A000061003500 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 7 pF | +/-10.0 ppm | -40℃~+85℃ |
