- 產品型號：57219039
- 頻率：32.768KHz
- 尺寸：2.0x6.0mm
- 產品介紹：AKER插件晶振,CT26-32.768-12.5-20-X,電話機晶振,32.768K晶振,計時晶振，AKER晶振，安碁晶振，型號：CT26系列，編碼為：CT26-32.768-12.5-20-X，頻率為：32.768KH...
-
AKER插件石英晶振,CT26-32.768-12.5-20-X,電話機晶振
.jpg)
.jpg)
AKER插件晶振,CT26-32.768-12.5-20-X,電話機晶振,32.768K晶振,計時晶振，AKER晶振，安碁晶振，型號：CT26系列晶振，編碼為：CT26-32.768-12.5-20-X，頻率為：32.768KHz，小體積晶振尺寸：2.0x6.0mm，圓柱型晶振，兩腳插件晶振，石英晶體，無源晶振，音叉晶體，石英晶體諧振器，無鉛晶振，12.5pF標準負載電容，±20PPM頻率公差，-40至+85°C溫度范圍。具有超小型，高精度，高性能，高品質，耐熱及耐環境特點。石英晶振，應用于：智能穿戴設備晶振，小型便捷式設備晶振，通訊設備，無線模塊，藍牙模塊，物聯網，智能手機，平板電腦，遙控器設備，電話機，時鐘晶振，智能家居等應用。
.jpg)
AKER插件晶振,CT26-32.768-12.5-20-X,電話機晶振,32.768K晶振,計時晶振,參數表
| Nominal Frequency | 32.768 | KHz | |||||||
| Frequency Tolerance at 25°C | Standard | ±20 | PPM | ||||||
| Optional | ±10 | ||||||||
| Aging | ±5 | PPM Max/Year | |||||||
| Turnover Temperature | 25 ±5 | ℃ | |||||||
| Temperature Coefficient | -0.035 Typ. PPM/℃² | ||||||||
| Temperature Range (Operating) | Standard | -20 to +70 | |||||||
| Optional | -40 to +85 | ||||||||
| Storage Temperature Range | -55 to +125 | ||||||||
| Equivalent Series Resistance(ESR) | 40 | K Ohm Max | |||||||
| Load Capacitance | Standard | 12.5 | pF | ||||||
| Optional | 6.0 | ||||||||
| Shunt Capacitance | 1.55 | pF Typ | |||||||
| Motional Capacitance | 3.0 | fF Typ | |||||||
| Drive Level | 1.0 | uW Max | |||||||
| Insulation Resistance | 500 at 100 Vdc ± 15 Vdc | M Ohm | |||||||
| Quality Factor | 50000 | Typ | |||||||
| Ratio Of Capacitance | 500 | ||||||||
.jpg)

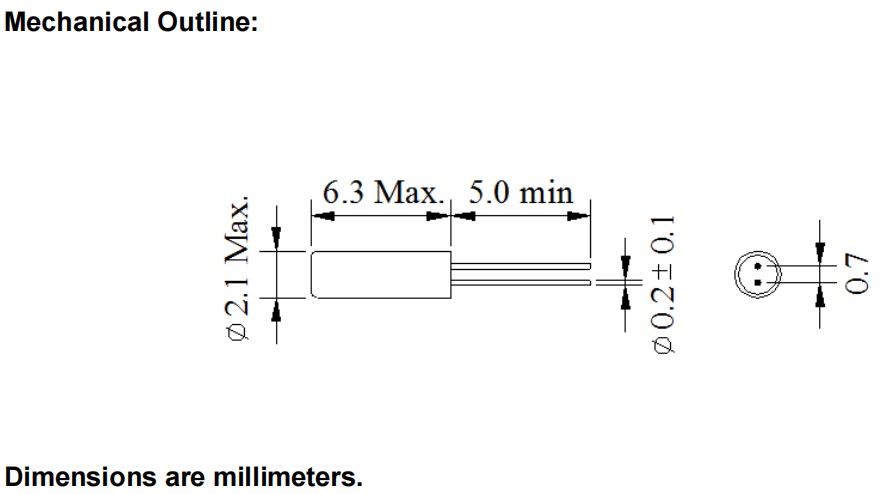

AKER插件晶振,CT26-32.768-12.5-20-X,電話機晶振,32.768K晶振,計時晶振,尺寸圖
| 產品編碼 | 進口晶振 | 描述 | 系列 | 頻率 |
| C2E-24.000-10-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C2E | 24 MHz |
| C2E-16.000-12-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C2E | 16 MHz |
| C2E-25.000-10-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 10PF SMD | C2E | 25 MHz |
| C2E-16.000-8-1530-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 8PF SMD | C2E | 16 MHz |
| C1E-32.000-10-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C1E | 32 MHz |
| C1E-25.000-20-2030-R | Aker安碁 | CRYSTAL 25.0000MHZ 20PF SMD | C1E | 25 MHz |
| C1E-24.000-10-1015-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C1E | 24 MHz |
| C1E-24.000-10-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C1E | 24 MHz |
| C1E-32.000-8-1515-R | Aker安碁 | CRYSTAL 32.0000MHZ 8PF SMD | C1E | 32 MHz |
| C16-32.000-8-3030-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 8PF SMD | C16 | 32 MHz |
| C16-26.000-8-1520-R | Aker安碁 | CRYSTAL 26.0000MHZ 8PF SMD | C16 | 26 MHz |
| C2E-12.000-18-1020-R | Aker安碁 | CRYSTAL12MHZ 18PF SMD | C2E | 12 MHz |
| C16-32.000-8-1515-X-R | Aker安碁 | CRYSTAL 32MHZ 8PF SMD | C16 | 32 MHz |
| C2E-12.000-18-1020-X-R | Aker安碁 | CRYSTAL12MHZ 18PF SMD | C2E | 12 MHz |
| C2E-12.000-8-2050-X1-R | Aker安碁 | CRYSTAL 12MHZ 8PF SMD AEC-Q200 | C2E X1 | 12 MHz |
| C16-96.000-8-1520-X2-R | Aker安碁 | CRYSTAL 96MHZ 8PF SMD | - | 96 MHz |
| C1E-76.800-10-1012-X-M | Aker安碁 | CRYSTAL 76.8MHZ 10PF SMD | C1E | 76.8 MHz |
| C1E-80.000-10-1015-X-M | Aker安碁 | CRYSTAL 80MHZ 10PF SMD | C1E | 80 MHz |
| C1E-76.800-8-1012-X-M | Aker安碁 | CRYSTAL 76.8MHZ 8PF SMD | C1E | 46.8 MHz |
| C1E-80.000-8-1015-X-M | Aker晶振 | CRYSTAL 80MHZ8PF SMD | C1E | 80 MHz |
| C16-26.000-8-1010-R | Aker安碁 | CRYSTAL 26MHZ 8PF SMD | C16 | 26 MHz |
| C2E-12.000-10-2050-X1-R | Aker安碁 | CRYSTAL 12MHZ 10PF SMD AEC-Q200 | C2E X1 | 12 MHz |
| C1E-96.000-8-1216-X2-R | Aker安碁 | CRYSTAL 96MHZ 8PF SMD | C1E X2 | 96 MHz |
| C2E-16.000-10-1010-R | Aker安碁 | CRYSTAL 16.0000MHZ 10PF SMD | C2E | 16 MHz |
| C1E-24.000-10-1015-M | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C1E | 24 MHz |
| C2E-25.000-10-3030-X-M | Aker安碁 | CRYSTAL 25.0000MHZ 10PF SMD | C2E | 25 MHz |
| C2E-48.000-10-1020-X-R | Aker安碁 | CRYSTAL 48MHZ SMD FOR WIFI | C2E | 48 MHz |
| C1E-96.000-9.9-1216-X2-R | Aker安碁 | CRYSTAL 96MHZ 9.9PF SMD | C1E | 96 MHz |
| C1E-52.000-8-1012-X-M | Aker安碁 | CRYSTAL 52MHZ 10PF SMD | C1E | 52 MHz |
| C1E-52.000-10-1012-X-M | Aker安碁 | CRYSTAL 52MHZ 8PF SMD | C1E | 52 MHz |
| C2E-20.000-10-2050-X1-R | Aker安碁 | CRYSTAL 20MHZ 10PF SMD AEC-Q200 | C2E X1 | 20 MHz |
| C1E-32.000-8-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 8PF SMD | C1E | 32 MHz |
| C1E-40.000-8-1030-A-X2-R | Aker安碁 | UWB CRYSTAL, 2016, 40.000MHZ, 8P | C1E Auto | 40 MHz |
| C1E-40.000-8-1550-X1-R | Aker安碁 | UWB CRYSTAL, 2016, 40.0000MHZ, 8 | C1E | 40 MHz |
| C1E-16.000-10-1520-X-R | Aker安碁 | UWB CRYSTAL, 2016, 16.000MHZ, 10 | C1E | 16 MHz |
| C1E-55.200-8-1035-A-X2-R | Aker安碁 | UWB CRYSTAL, 2016, 55.200MHZ, 8P | C1E Auto | 55.2 MHz |
| C16-40.000-8-1020-A-X-R | Aker安碁 | UWB CRYSTAL, 1612, 40.0000MHZ, 8 | C16 Auto | 40 MHz |
| C1E-48.000-8-1020-X2-M | Aker安碁 | CRYSTAL 48MHZ 8PF SMD | C1E | 48 MHz |
| C1E-48.000-10-1020-X2-M | Aker安碁 | CRYSTAL 48MHZ 10PF | C1E | 48 MHz |
| C1E-40.000-8-1050-A-X1-R | Aker安碁 | CRYSTAL, 1612, 40.000MHZ, 8PF, S | C1E Auto | 40 MHz |
| C1E-32.000-8-1550-A-X1-R | Aker安碁 | CRYSTAL, 1612, 32.000MHZ, 8PF, S | C1E Auto | 32 MHz |
| C1E-24.000-8-1050-A-X1-R | Aker安碁 | CRYSTAL, 1612, 24.000MHZ, 8PF, S | C1E Auto | 24 MHz |
| C1E-25.000-12-1050-A-X1-R | Aker安碁 | CRYSTAL, 1612, 25.000MHZ, 12PF, | C1E Auto | 25 MHz |
| C1E-16.000-12-20100-A-X1-R | Aker安碁 | CRYSTAL, 2016, 16.000MHZ, 12PF, | C1E Auto | 16 MHz |
| C2E-19.200-13-2030-X-R | Aker安碁 | CRYSTAL 19.2MHz 13PF SMD | C2E | 19.2 MHz |
