更多>>常用編碼Q22FA23V0023500是一款耐壓性能極強的無源貼片晶體用于藍牙
來源：http://www.diginow.com.cn 作者：aius 2022年08月29
常用編碼Q22FA23V0023500是一款耐壓性能極強的無源貼片晶體用于藍牙，隨著高科技的發展需求，許多新型的高科技產品推出，如人工智能，VR，智能家居等系列產品，這些產品的出現將為我們平淡的生活增加一抹光彩，并帶來了非凡的體驗，感受科技帶來的震撼，同時也需要保持一定警惕力，才得以在這個時代里找到新的方向與機會，高科技的推出必然缺少不了晶振產品，而對于晶振產品的了解，也許并非像我們所想象的那么簡單，也許其中涉及極其深?yuàn)W，以及廣度，當產品與晶振完美結合時，它的體驗又是如何，晶振是如何運行的您又知多少？
                                                                                                                                                               Product Number16 |
 LxWxH |
 愛普生晶振型號 |
 Frequency |
 CL Value |
 Freq.tol. @+25°C |
 Freq.tol./Temp.range |
 Temperature range |
| Q22FA23V0013600 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 8 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0014400 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-15 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0014900 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 20 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0015000 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C |
| Q22FA23V0016000 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 16 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0016200 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0016400 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0017000 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0017800 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 18 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0017900 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.500000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0018000 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0019200 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 10 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0019300 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12.5 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0019500 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.000000 MHz | 9 pF | +/-20 ppm | +/-50 ppm | -40 to +85 °C |
| Q22FA23V0019700 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 8 pF | +/-15 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0020500 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 8 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0021000 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 18 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0023300 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-20 ppm | +/-20 ppm | -20 to +70 °C |
| Q22FA23V0023500 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 9 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0023900 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0024100 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -40 to +85 °C |
常用編碼Q22FA23V0023500是一款耐壓性能極強的無源貼片晶體用于藍牙，石英晶體，有天然的也有人造的，是一種重要的壓電晶體材料。石英晶體本身并非振蕩器，它只有借助于有源激勵和無源電抗網絡方可產生振蕩。SPXO主要是由品質因數(Q)很高的晶體諧振器(即晶體振子)與反饋式振蕩電路組成的。石英晶體振子是振蕩器中的重要元件，晶體的頻率(基頻或n次諧波頻率)及其溫度特性在很大程度上取決于其切割取向。石英晶體諧振器的基本結構、(金屬殼)封裝及其等效電路。只要在晶體振子板極上施加交變電壓，就會使晶片產生機械變形振動，此現象即所謂逆壓電效應。當外加電壓頻率等于晶體諧振器的固有頻率時，就會發生壓電諧振，從而導致機械變形的振幅突然增大。
石英晶體振蕩器是高精度和高穩定度的振蕩器，被廣泛應用于彩電、計算機、遙控器等各類振蕩電路中，以及通信系統中用于頻率發生器、為數據處理設備產生時鐘信號和為特定系統提供基準信號 。石英晶體振蕩器是利用石英晶體(二氧化硅的結晶體)的壓電效應制成的一種諧振器件，它的基本構成大致是：從一塊石英晶體上按一定方位角切下薄片(簡稱為晶片，它可以是正方形、矩形或圓形等)，在它的兩個對應面上涂敷銀層作為電極，在每個電極上各焊一根引線接到管腳上，再加上封裝外殼就構成了石英晶體諧振器，簡稱為石英晶體或晶體、晶振。其產品一般用金屬外殼封裝，也有用玻璃殼、陶瓷或塑料封裝的 。
石英晶體振蕩器是高精度和高穩定度的振蕩器，被廣泛應用于彩電、計算機、遙控器等各類振蕩電路中，以及通信系統中用于頻率發生器、為數據處理設備產生時鐘信號和為特定系統提供基準信號 。石英晶體振蕩器是利用石英晶體(二氧化硅的結晶體)的壓電效應制成的一種諧振器件，它的基本構成大致是：從一塊石英晶體上按一定方位角切下薄片(簡稱為晶片，它可以是正方形、矩形或圓形等)，在它的兩個對應面上涂敷銀層作為電極，在每個電極上各焊一根引線接到管腳上，再加上封裝外殼就構成了石英晶體諧振器，簡稱為石英晶體或晶體、晶振。其產品一般用金屬外殼封裝，也有用玻璃殼、陶瓷或塑料封裝的 。
|
Product Number16 |
LxWxH |
愛普生晶振型號 |
Frequency |
CL Value |
Freq.tol. @+25°C |
Freq.tol./Temp.range |
Temperature range |
| Q22FA23V0024500 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0024700 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-20 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0025500 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-20 ppm | +/-20 ppm | -20 to +70 °C |
| Q22FA23V0026600 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0026800 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0027900 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 18 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0029100 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-15 ppm | +/-30 ppm | -40 to +85 °C |
| Q22FA23V0030700 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 8 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0031000 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 20 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0031400 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-50 ppm | +/-50 ppm | -40 to +85 °C |
| Q22FA23V0032600 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-10 ppm | +/-23 ppm | -40 to +85 °C |
| Q22FA23V0032700 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-20 ppm | +/-23 ppm | -40 to +85 °C |
| Q22FA23V0033200 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 18 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0035800 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 7 pF | +/-30 ppm | +/-20 ppm | -20 to +70 °C |
| Q22FA23V0036700 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C |
| Q22FA23V0037200 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 18 pF | +/-20 ppm | +/-30 ppm | -40 to +85 °C |
| Q22FA23V0037300 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -40 to +85 °C |
| Q22FA23V0037400 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
| Q22FA23V0037500 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.800000 MHz | 15 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C |
| Q22FA23V0037900 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.300000 MHz | 10 pF | +/-50 ppm | +/-50 ppm | -20 to +70 °C |
| Q22FA23V0038000 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.993000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |

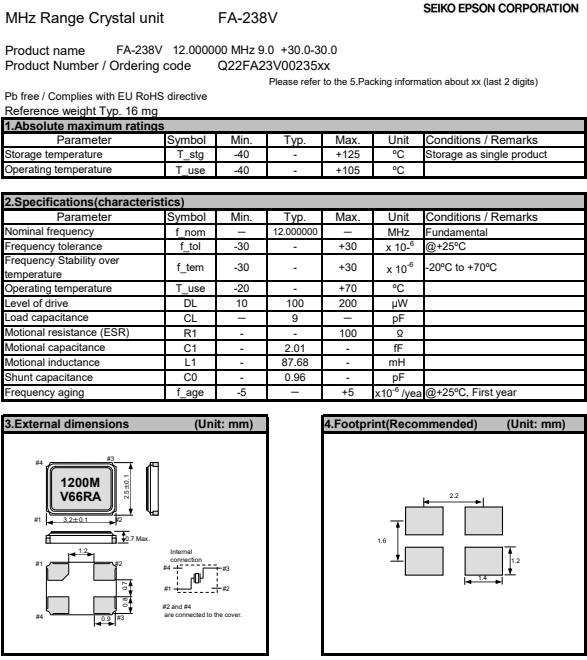

愛普生的這款FA-238V，編碼Q22FA23V0023500晶振，頻率12.000000兆赫，尺寸(長×寬×高)3.2 × 2.5 × 0.7 mm，負載電容9PF,頻率公差+ / -30 ppm，特征公差+ / -30 ppm,溫度范圍-20到+70°C，具有非常高的穩定性和耐壓性能，非常適用于手機，藍牙，無線局域網，ISM波段收音機，MPU時鐘,FA-238V晶振其小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為時鐘，藍牙的最佳之選.
