更多>>HXQ-LVPECL系列2.5V/3.3V高溫LVPECL晶體振蕩器
來源：http://www.diginow.com.cn 作者：康比電子 2022年07月02
百利通亞陶晶振在生產石英晶體振蕩器方面的技術上是無人能及，Diodes晶振所提供石英振蕩器和SaRonix-eCera™的石英晶體利用自己內部晶體和IC設計，Diodes提供最好種類的晶體和石英振蕩器可以配合用戶的設計需求。在業界擁有最小的石英振蕩器，實現極好的穩定性透過廣泛范圍的操作狀況。石英晶體振蕩器也分為多中類別：溫補晶振，壓控晶振，壓控溫補晶振，差分晶振等均為有源晶振。

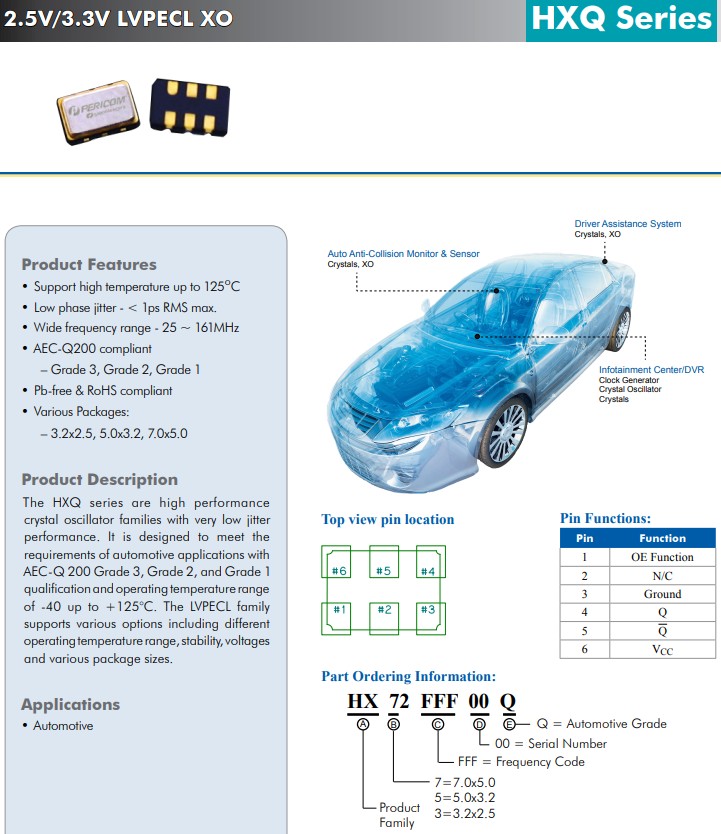

HXQ系列是具有極低抖動的高性能晶體振蕩器系列表現。HXQ-LVPECL系列2.5V/3.3V、小體積尺寸3.2x2.5mm、汽車級、高溫LVPECL晶體振蕩器，它旨在滿足汽車應用的要求AEC-Q 200 3級、2級和1級認證和工作溫度范圍-40°C 至 +125°C。LVPECL系列支持各種選項，包括不同的工作溫度范圍、穩定性、電壓和各種封裝尺寸。
HXQ系列是具有極低抖動的高性能晶體振蕩器系列表現。HXQ-LVPECL系列2.5V/3.3V、小體積尺寸3.2x2.5mm、汽車級、高溫LVPECL晶體振蕩器，它旨在滿足汽車應用的要求AEC-Q 200 3級、2級和1級認證和工作溫度范圍-40°C 至 +125°C。LVPECL系列支持各種選項，包括不同的工作溫度范圍、穩定性、電壓和各種封裝尺寸。
產品特點：
支持高達125°C的高溫
低相位抖動 - < 1ps RMS最大值。
寬頻率范圍 - 25 ~ 161MHz
符合 AEC-Q200– 3 級、2 級、1級
無鉛且符合 RoHS 標準
各種軟件包：3.2x2.5、5.0x3.2、7.0x5.0mm有源晶振
應用于汽車
HXQ-LVPECL系列2.5V/3.3V高溫LVPECL晶體振蕩器,KX2513G0032.768000,小體積晶振,ECERA晶振
HXQ-LVPECL系列2.5V/3.3V高溫LVPECL晶體振蕩器,KX2513G0032.768000,小體積晶振,ECERA晶振
| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Frequency 頻率 | Frequency Stability頻率穩定度 | Operating Temperature 工作溫度 |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNETHE025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNSURV027 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 27MHz | ±30ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FNGEPO002 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| FKSSD1025 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 25MHz | ±25ppm | -10°C ~ 70°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| UJWIFI026 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 26MHz | ±20ppm | -30°C ~ 85°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FNEPON125 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 125MHz | ±50ppm | -20°C ~ 70°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FK1330001Z | Diodes Incorporated | SaRonix-eCera™ FK | 13.3333MHz | ±25ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400011 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FJ2400002 | Diodes Incorporated | SaRonix-eCera™ FJ | 24MHz | ±50ppm | -40°C ~ 85°C |
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -40°C ~ 85°C |
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -40°C ~ 85°C |
Product Parameters
| Subfamily | High Temp XO |
|---|---|
| Product Series | HXQ-LVPECL |
| Compliance(Only Automotive supports PPAP) | Automotive |
| Freq Range (MHz) | 25 to 162 |
| Jitter RMS (ps) | <1 ps RMS |
| Stability (PPM) | 20 to 50 |
| Package Size (mm) | 3.2 x 2.5 |
| PkgType | Ceramic Seam |
| Output Logic | LVPECL |
| Supply Voltage (V) | 3.3, 2.5 |
| Pads | 6 |
產品參數：
亞科 高溫XO
產品系列 HXQ-LVPECL
合規性（僅汽車支持 PPAP）汽車
頻率范圍 (MHz) 25 至 162
抖動均方根 (ps) <1 ps RMS
穩定性 (PPM) 20 到 50
包裝尺寸（毫米） 3.2 x 2.5mm
包裝類型 陶瓷縫
輸出邏輯 LVPECL差分晶振
電源電壓 (V) 3.3, 2.5
墊 6
.JPG)
| FN2500149 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -40°C ~ 85°C |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| SXGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm | -40°C ~ 85°C |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm | -40°C ~ 105°C |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm | -40°C ~ 105°C |
| HX2513F0026.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 26MHz | ±50ppm | -40°C ~ 105°C |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm | -40°C ~ 105°C |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm | -40°C ~ 105°C |
| HX3125006Q | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±30ppm | -40°C ~ 105°C |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -20°C ~ 70°C |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -20°C ~ 70°C |
| NX3211C0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm | -20°C ~ 70°C |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm | -20°C ~ 70°C |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm | -20°C ~ 70°C |
| FJ1600002 | Diodes Incorporated | SaRonix-eCera™ FJ | 16MHz | ±50ppm | -20°C ~ 70°C |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm | -40°C ~ 85°C |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm | -40°C ~ 85°C |
| JX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ JX | 70.656MHz | ±25ppm | -40°C ~ 85°C |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm | -20°C ~ 70°C |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm | -20°C ~ 70°C |
| UJ2600007Z | Diodes Incorporated | SaRonix-eCera™ UJ | 26MHz | ±20ppm | -20°C ~ 70°C |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm | -40°C ~ 85°C |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm | -40°C ~ 85°C |
| FJ1120001Z | Diodes Incorporated | SaRonix-eCera™ FJ | 11.2896MHz | ±25ppm | -40°C ~ 85°C |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm | -20°C ~ 70°C |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm | -20°C ~ 70°C |
| FDC500026 | Diodes Incorporated | SaRonix-eCera™ FD | 125MHz | ±50ppm | -20°C ~ 70°C |
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm | -40°C ~ 105°C |
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm | -40°C ~ 105°C |
我們的汽車兼容晶體振蕩器 (XO) 旨在滿足汽車應用的嚴格要求，并在其部件號中以“Q”區分。它們是在經過嚴格 IATF 16949 標準認證的設施中制造的，并且能夠根據 VDA6.3 進行客戶審核。這些零件均受 PPAP（生產零件批準流程）文檔支持，從而滿足汽車電子行業的所有要求。
此外，所有符合汽車標準的晶體振蕩器 (XO) 均已使用 AECQ-200 和 QAP-81 進行了認證，以涵蓋石英諧振器和 XO IC，而不是使用 AEC-Q100（僅針對 IC 定義）。我們計劃在 2021 年開始為我們新的符合汽車標準的XO產品逐步采用 AECQ-104 認證標準，但它不會將以前符合 AECQ-200 + QAP-81 的產品重新認證為 AEC-Q104（AECQ- 200 + QAP-81 資格標準和 AECQ-0104 資格標準是測試數量和添加 X 射線檢查）。HXQ-LVPECL系列2.5V/3.3V高溫LVPECL晶體振蕩器,KX2513G0032.768000,小體積晶振,ECERA晶振
| HX7011C0025.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 25MHz | ±25ppm | -40°C ~ 105°C |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -20°C ~ 70°C |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -20°C ~ 70°C |
| NX5011B0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -20°C ~ 70°C |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm | -40°C ~ 85°C |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm | -40°C ~ 85°C |
| FNA000088Z | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±50ppm | -40°C ~ 85°C |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm | -20°C ~ 70°C |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm | -20°C ~ 70°C |
| FNA000065 | Diodes Incorporated | SaRonix-eCera™ FN | 100MHz | ±25ppm | -20°C ~ 70°C |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -40°C ~ 85°C |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -40°C ~ 85°C |
| NX71C50003 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±25ppm | -40°C ~ 85°C |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm | -40°C ~ 85°C |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm | -40°C ~ 85°C |
| FNC500131 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm | -40°C ~ 85°C |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm | -20°C ~ 70°C |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm | -20°C ~ 70°C |
| NX71C50001 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±20ppm | -20°C ~ 70°C |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm | -40°C ~ 85°C |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm | -40°C ~ 85°C |
| FM3900001Z | Diodes Incorporated | SaRonix-eCera™ FM | 39.0625MHz | ±50ppm | -40°C ~ 85°C |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -40°C ~ 85°C |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -40°C ~ 85°C |
| FKA000018Z | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -40°C ~ 85°C |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm | -40°C ~ 105°C |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm | -40°C ~ 105°C |
| HX3124501Q | Diodes Incorporated | SaRonix-eCera™ HX | 24.545452MHz | ±25ppm | -40°C ~ 105°C |
| HX31330001 | Diodes Incorporated | SaRonix-eCera™ HX | 33MHz | ±50ppm | -40°C ~ 90°C |
| HX31330001 | Diodes Incorporated | SaRonix-eCera™ HX | 33MHz | ±50ppm | -40°C ~ 90°C |
| HX31330001 | Diodes Incorporated | SaRonix-eCera™ HX | 33MHz | ±50ppm | -40°C ~ 90°C |
| HX3212F0040.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 40MHz | ±50ppm | -40°C ~ 105°C |
| HX3212F0040.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 40MHz | ±50ppm | -40°C ~ 105°C |
| HX3212F0040.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 40MHz | ±50ppm | -40°C ~ 105°C |
| SX10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SX10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| SX10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm | -40°C ~ 85°C |
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm | -40°C ~ 105°C |
HXQ-LVPECL系列2.5V/3.3V高溫LVPECL晶體振蕩器,KX2513G0032.768000,小體積晶振,ECERA晶振
HXQ-LVDS系列 3225 20~50 3.2 x 2.5 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽車級、高溫LVDS晶體振蕩器
HXQ-LVDS系列 3225 20~50 3.2 x 2.5 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽車級、高溫LVDS晶體振蕩器
HXQ-LVDS系列 5032 20~50 5.0 x 3.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽車級、高溫LVDS石英晶體振蕩器
HXQ-LVDS系列 7050 20~50 7.0 x 5.0 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽車級、高溫LVDS晶體振蕩器
HXQ-LVPECL系列 3225 20~50 3.2 x 2.5 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽車級、高溫LVPECL晶體振蕩器
HXQ-LVPECL-5032系列 20~50 5.0 x 3.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽車級、高溫LVPECL晶體振蕩器
HXQ-LVPECL-7050系列 20~50 7.0 x 5.0 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽車級、高溫LVPECL晶體振蕩器
